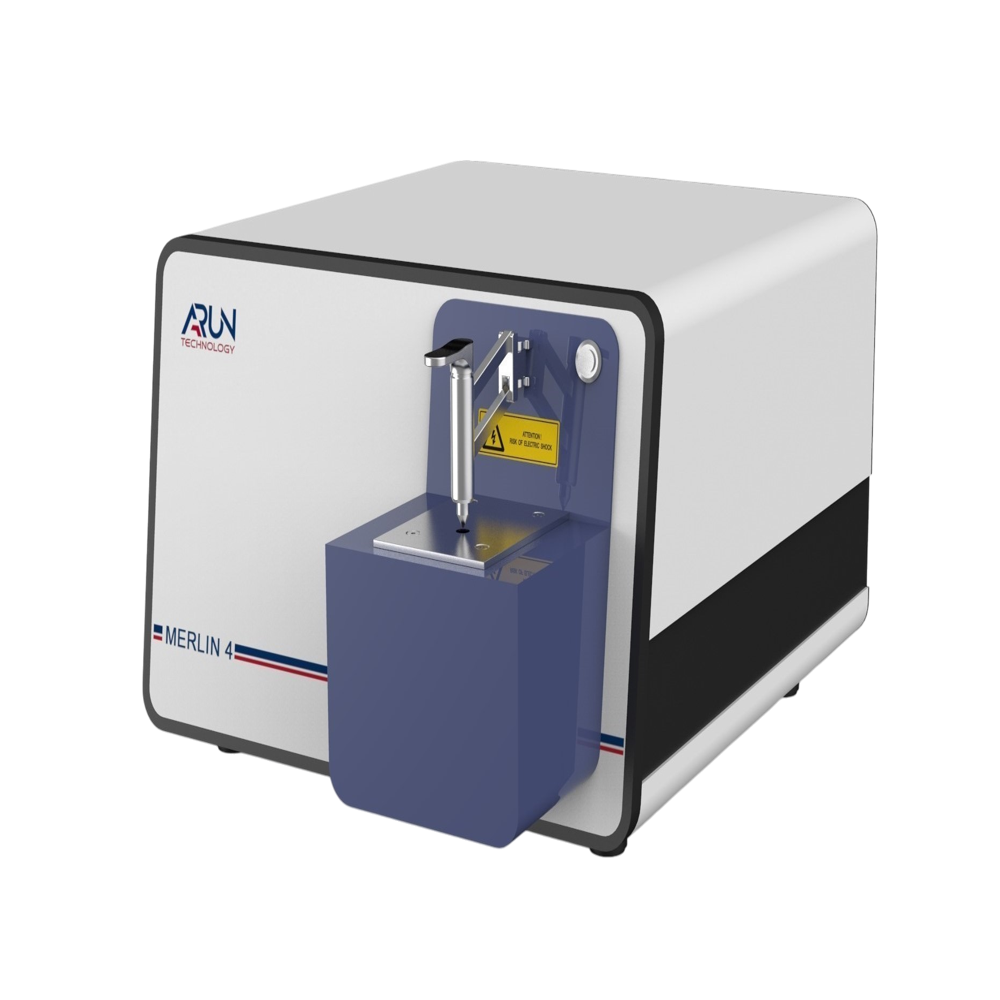

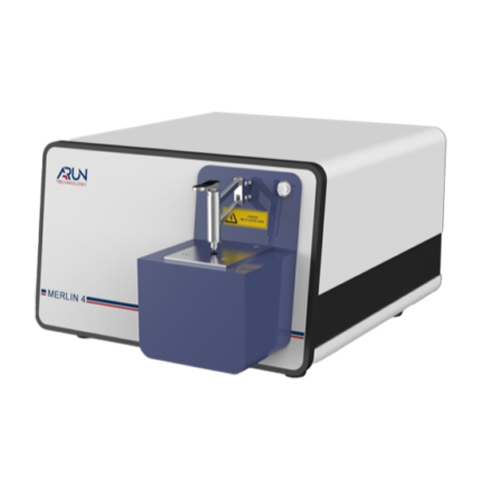

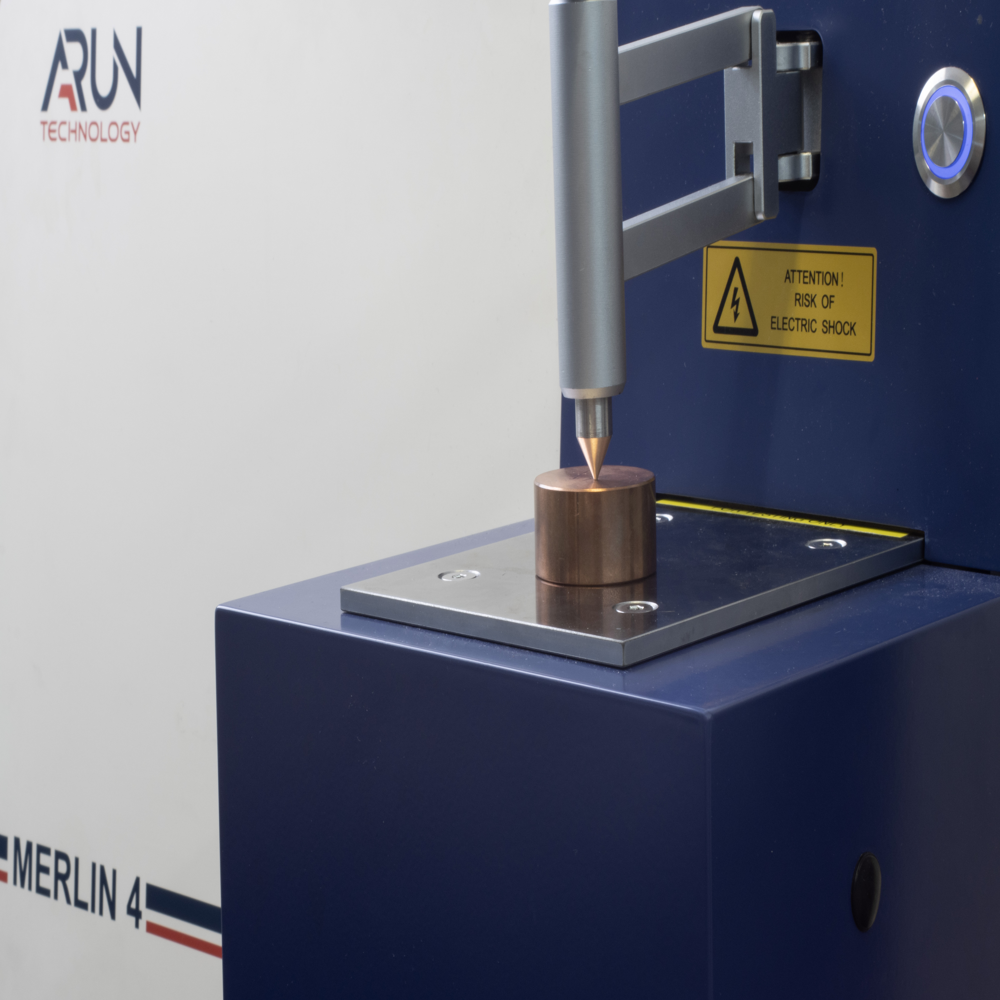

Send InquirySpectrometer - OES - Model MERLIN 4
Spectrometer - OES - Model MERLIN 4 Specification
- Accuracy
- 97 %
- Application
- Incoming Raw Material Inspection, Forging, Castings, Engineering, Sheet Metal, Foundry, NABL Labs
- Temperature
- 25 Celsius (oC)
- Gas Pressure
- 7 Bar
- Material
- All Metals, especially Fe & Non Fe, ALuminum, Copper
- Humidity
- 20-80%
- Operate Method
- Factory Calibrated Programs
- Color
- Navy Blue
- Operating Voltage
- 230 Volt (V)
- Features
- 3 Years Manufacturer Warranty
- Weight
- 65 Kilograms (kg)
- Classification
- Optical Emission Spectrometer
- Resolution
- 0.7nm/mm
- Test Range
- All Metals
- Dimension (L*W*H)
- 65x39x79 Centimeter (cm)
- Number of Specimens
- 150/Day
- Voltage
- 230 Volt (v)
- Mounting Type
- Benchtop
- Interface Type
- Computer
- Power
- 320 Watt (w)
- Frequency
- 50-1000 Hertz (HZ)
- Power Supply
- Electric
- Display Type
- Digital
- Product Type
- Benchtop OES
- Response Time
- 35 Seconds
- Port Size
- USB, LAN
- Usage
- Certification of Alloys
- Machine Weight
- 67 Kilograms (kg)
- Test Speed
- 30 seconds
- Test Width
- 15 Millimeter (mm)
- Control Mode
- PC Control
Spectrometer - OES - Model MERLIN 4 Trade Information
- Minimum Order Quantity
- 1 Piece
- FOB Port
- FOR destination
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 5 Pieces Per Month
- Delivery Time
- 10 Week
- Sample Policy
- Contact us for information regarding our sample policy
- Main Domestic Market
- All India
- Certifications
- CE, RoHS
About Spectrometer - OES - Model MERLIN 4
NO COMPROMISE SOLUTIONThe MERLIN 4 Optical Emission Spectrometer is a cutting-edge testing equipment designed for industrial use. Its control mode is manual with an adjustable test speed, ensuring precise and efficient operation. Constructed with durable stainless steel material, this semi-automatic spectrometer boasts a digital display for easy data reading. Powered by electricity, it offers reliable performance for accurate analytical results.
| MERLIN 4 Visible | MERLIN 4 Ultra |
| Suited for all non-ferrous applications when UV elements are not required. Wavelengths 205-521nm |
Suitable for ferrous applications with important elements in the UV spectral range. e.g. C, P, S, As, Sn, B, etc Wavelengths 175-680nm |
| Optical System | Paschen-Runge |
| Detector Technology | CMOS |
| Applications | Fe, Al, Cu, Co, Mg, Ni, Pb, Sn, Ti, Zn |
| Measurement of Nitrogen | No |
| Measurement of Phosphorous | Yes (MERLIN 4 Ultra) |
| Measurement of Sodium and Lithium | No |
| Software | Intuitive software for simple routine operations Various user levels for secure and task-specific operations Functions for qualitative and quantitative analysis |
| Number of Optical Systems | MERLIN 4 Visible 1 Optic MERLIN 4 Ultra 1 Optic |
| Number of CMOS Detectors | MERLIN 4 Visible 12 MERLIN 4 Ultra 13 |
| EMC | IEC61000-4-2, IEC61000-4-4, IEC61000-4-5 |
| Working Temperature | 10deg to 35 degC |
| Argon Purity | 99.998% Minimum 99.999% Ideal |
| Argon Flow | When Burning - 5L/min Standby Mode - 0.5L/min Sleep Mode - 0.1L/min |
| Dimensions | 65 x 39 x 79 cm |
| Weight | 67kg |
| Power Supply | Line input 90 or 260 volts, AC 50 to 60Hz |
FAQs of Merlin 4 Optical Emission Spectrometer:
Q: What is the control mode of the Merlin 4 Optical Emission Spectrometer?
A: The control mode of this spectrometer is manual.Q: Is the test speed adjustable on the Merlin 4 Optical Emission Spectrometer?
A: Yes, the test speed is adjustable for flexible testing requirements.Q: What type of display does the Merlin 4 Optical Emission Spectrometer feature?
A: The spectrometer is equipped with a digital display for convenient data viewing.Q: How is the Merlin 4 Optical Emission Spectrometer operated?
A: It operates through a semi-automatic method for user-friendly control.Q: What is the power supply requirement for the Merlin 4 Optical Emission Spectrometer?
A: The spectrometer is powered by electricity for consistent and reliable performance.Price 2200000.0 INR/ Piece
