Send InquiryMerlin 4 Optical Emission Spectrometer
Merlin 4 Optical Emission Spectrometer Specification
- Operate Method
- Semi Automatic
- Power Supply
- Electric
- Usage
- Testing equipment
- Material
- Stainless Steel
- Display Type
- Digital
- Test Speed
- Adjustable
- Control Mode
- Manual
Merlin 4 Optical Emission Spectrometer Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 50 Units Per Month
- Delivery Time
- 7 - 10 Days
- Main Domestic Market
- All India
About Merlin 4 Optical Emission Spectrometer
The Merlin 4 Optical Emission Spectrometer is a cutting-edge testing equipment designed for industrial use. Its control mode is manual with an adjustable test speed, ensuring precise and efficient operation. Constructed with durable stainless steel material, this semi-automatic spectrometer boasts a digital display for easy data reading. Powered by electricity, it offers reliable performance for accurate analytical results.
| MERLIN 4 Visible | MERLIN 4 Ultra |
| Suited for all non-ferrous applications when UV elements are not required. Wavelengths 205-521nm |
Suitable for ferrous applications with important elements in the UV spectral range. e.g. C, P, S, As, Sn, B, etc Wavelengths 175-680nm |
| Optical System | Paschen-Runge |
| Detector Technology | CMOS |
| Applications | Fe, Al, Cu, Co, Mg, Ni, Pb, Sn, Ti, Zn |
| Measurement of Nitrogen | No |
| Measurement of Phosphorous | Yes (MERLIN 4 Ultra) |
| Measurement of Sodium and Lithium | No |
| Software | Intuitive software for simple routine operations Various user levels for secure and task-specific operations Functions for qualitative and quantitative analysis |
| Number of Optical Systems | MERLIN 4 Visible 1 Optic MERLIN 4 Ultra 1 Optic |
| Number of CMOS Detectors | MERLIN 4 Visible 12 MERLIN 4 Ultra 13 |
| EMC | IEC61000-4-2, IEC61000-4-4, IEC61000-4-5 |
| Working Temperature | 10deg to 35 degC |
| Argon Purity | 99.998% Minimum 99.999% Ideal |
| Argon Flow | When Burning - 5L/min Standby Mode - 0.5L/min Sleep Mode - 0.1L/min |
| Dimensions | 65 x 39 x 79 cm |
| Weight | 67kg |
| Power Supply | Line input 90 or 260 volts, AC 50 to 60Hz |
FAQs of Merlin 4 Optical Emission Spectrometer:
Q: What is the control mode of the Merlin 4 Optical Emission Spectrometer?
A: The control mode of this spectrometer is manual.Q: Is the test speed adjustable on the Merlin 4 Optical Emission Spectrometer?
A: Yes, the test speed is adjustable for flexible testing requirements.Q: What type of display does the Merlin 4 Optical Emission Spectrometer feature?
A: The spectrometer is equipped with a digital display for convenient data viewing.Q: How is the Merlin 4 Optical Emission Spectrometer operated?
A: It operates through a semi-automatic method for user-friendly control.Q: What is the power supply requirement for the Merlin 4 Optical Emission Spectrometer?
A: The spectrometer is powered by electricity for consistent and reliable performance.- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 50 Units Per Month
- Delivery Time
- 7 - 10 Days
- Main Domestic Market
- All India
Get Latest PriceTell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Optical Emission Spectrometer Category

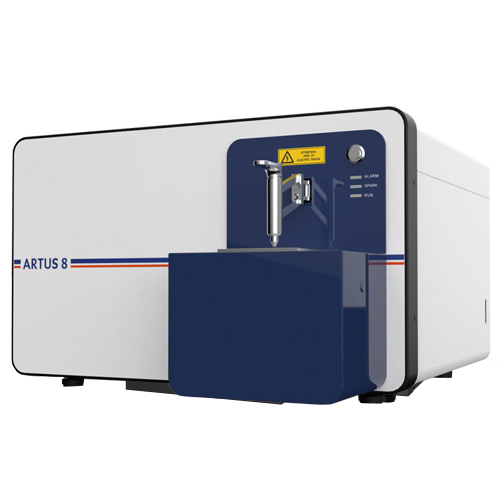

Artus 8 Optical Emission Spectrometer
Minimum Order Quantity : 1 Unit
Material : Stainless Steel
Usage : Testing equipment
Power Supply : Electric
Test Speed : Adjustable
Control Mode : Manual

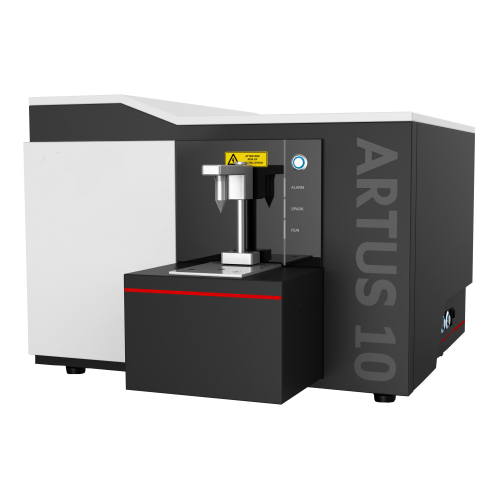

Artus 10 Optical Emission Spectrometer
